Introduction
The IEEE-1149.1 standard has become ubiquitous over the years thanks to heavy use in structural test and system debug and is poised to continue to grow and adapt with new IC and board-level technologies. To better understand 1149.1 and its 1149.x counterparts, we’ll take a brief look at each of these standards.
1149.1 IEEE Standard Test Access Port and Boundary-Scan Architecture
The IEEE-1149.1 standard for boundary-scan (also known as JTAG) was introduced in 1990 and has steadily grown in popularity over the last two decades. IEEE-1149.1 provides a framework for structural test as well as defining the TAP port used for communication. The JTAG TAP has also used for applications including In-System-Programming (ISP), emulation and source-level debugging, and more recently has been expanded to emulation-based functional test in the form of JTAG Embedded Test (JET).
1149.4 Mixed-Signal Test Bus
Introduced in 2000, the IEEE-1149.4 standard provides analog and mixed-signal test capability through boundary-scan. IEEE-1149.4 defines a two-wire analog bus consisting of an analog drive and analog sense pin. By including circuitry within the IC to connect these pins to different analog nodes, the JTAG port can be used to perform analog and mixed signal measurements. A decade after release, the IEEE-1149.4 standard has not seen wide adoption.
1149.5 Module Test and Maintenance Bus (MTM-Bus) Protocol
Released in 1995, the IEEE-1149.5 standard defines a serial, backplane, test and maintenance bus, called MTM-Bus. The MTM-Bus protocol defines the physical, link, and command layers used to communicate between modules in a test system. The 1149.5 standard operates at the board/system level in the same way that 1149.1operates at the chip level.
1149.6 Boundary-Scan Testing of Advanced Digital Networks

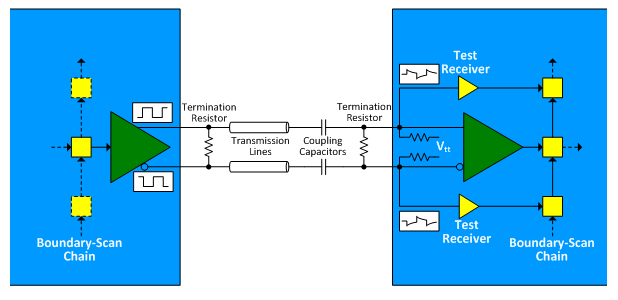

The IEEE-1149.6 standard, released in 2003, expands on the 1149.1 standard by adding additional capabilities for transmitting and receiving test signals over advanced digital networks. The 1149.6 standard provides additional test and diagnostic capabilities for AC-coupled and differential network above and beyond what was originally possible with the 1149.1 standard. IEEE-1149.6 has been picking up steam in recent years and is now commonly implemented in boundary-scan components with high speed digital I/O capabilities and is expected to see continued increases in adoption.
1149.7 Reduced-Pin and Enhanced-Functionality Test Access Port and Boundary-Scan Architecture
IEEE-1149.7 represents the newest addition to the 1149.x standards. Release in 2009, 1149.7 is intended to be complementary to the 1149.1 standard. Major features include reduced pin count and star topology support as well as chip-level bypass, individual devices addressing, and power consumption control. This new standard was developed with modern multi-core and multi-chip-module IC designs in mind, paving the way for JTAG test on a new generation of smaller, faster, and more power efficient systems.
1149.1 IEEE Standard Test Access Port and Boundary-Scan Architecture
The IEEE-1149.1 standard for boundary-scan (also known as JTAG) was introduced in 1990 and has steadily grown in popularity over the last two decades. IEEE-1149.1 provides a framework for structural test as well as defining the TAP port used for communication. The JTAG TAP has also used for applications including In-System-Programming (ISP), emulation and source-level debugging, and more recently has been expanded to emulation-based functional test in the form of JTAG Embedded Test (JET).
1149.4 Mixed-Signal Test Bus
Introduced in 2000, the IEEE-1149.4 standard provides analog and mixed-signal test capability through boundary-scan. IEEE-1149.4 defines a two-wire analog bus consisting of an analog drive and analog sense pin. By including circuitry within the IC to connect these pins to different analog nodes, the JTAG port can be used to perform analog and mixed signal measurements. A decade after release, the IEEE-1149.4 standard has not seen wide adoption.
1149.5 Module Test and Maintenance Bus (MTM-Bus) Protocol
Released in 1995, the IEEE-1149.5 standard defines a serial, backplane, test and maintenance bus, called MTM-Bus. The MTM-Bus protocol defines the physical, link, and command layers used to communicate between modules in a test system. The 1149.5 standard operates at the board/system level in the same way that 1149.1operates at the chip level.
1149.6 Boundary-Scan Testing of Advanced Digital Networks
The IEEE-1149.6 standard, released in 2003, expands on the 1149.1 standard by adding additional capabilities for transmitting and receiving test signals over advanced digital networks. The 1149.6 standard provides additional test and diagnostic capabilities for AC-coupled and differential network above and beyond what was originally possible with the 1149.1 standard. IEEE-1149.6 has been picking up steam in recent years and is now commonly implemented in boundary-scan components with high speed digital I/O capabilities and is expected to see continued increases in adoption.
1149.7 Reduced-Pin and Enhanced-Functionality Test Access Port and Boundary-Scan Architecture
IEEE-1149.7 represents the newest addition to the 1149.x standards. Release in 2009, 1149.7 is intended to be complementary to the 1149.1 standard. Major features include reduced pin count and star topology support as well as chip-level bypass, individual devices addressing, and power consumption control. This new standard was developed with modern multi-core and multi-chip-module IC designs in mind, paving the way for JTAG test on a new generation of smaller, faster, and more power efficient systems.
